3D-Laserscanning

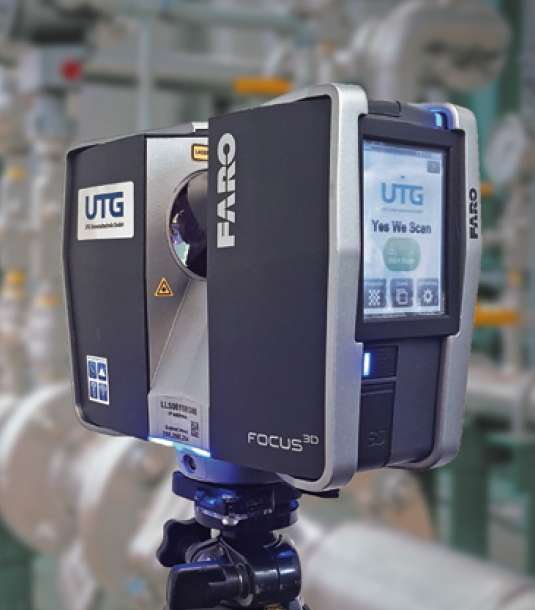

With our 3D laser scanner, we offer an innovative solution for the precise recording and documentation of entire systems. Using the Faro Focus S Plus 150, we create detailed scans with a range of up to 150 meter and an impressive accuracy of 1 millimeter. Post-processing enables individual scans to be referenced to form a comprehensive overall system, which is provided in universal point cloud formats.

Our data is ideal for further processing in software such as Autodesk Recap, SolidWorks® and Scene LT and supports the creation of 2D and 3D models and measurements. Our service covers all the requirements of modern plant planning and documentation, from planning checks and interference edge detection to the creation of visual documentation and the conversion of scan data into CAD or solid models.

Rely on maximum precision, efficient planning and comprehensive progress documentation – with 3D surveying from UTG.

Measurement of entire systems

  • Creating individual scans with the Faro Focus S Plus 150
  • 150m range / 1mm accuracy
  • Post-processing: referencing the scans to an overall system
  • 360° recordings

Provision of scan data

  • Provision for further processing
  • Scene LT (2D/3D viewing / measuring)
  • Autodesk Recap (import into all Autodesk products)
  • Universal point cloud format

Planning check / interfering edges

  • Import CAD data into Scene LT
  • Checking the planning against the real environment
  • Creation of visual documentation data

Reverse Engineering

  • Reverse engineering of the scan data into a solid model / CAD data
  • As-built documentation
  • Progress documentation in the ongoing project

Seamless integration of scan data into SolidWorks®

From scan to model - precision in as-built documentation

Using the latest technology, we transfer 3D laser scan data directly into a solid model in SolidWorks®. This enables detailed as-built documentation of industrial plants, machines and other objects. The exact digital representation of your structures forms the basis for precise planning, design and optimisation.

Our expertise in working with SolidWorks® ensures that your projects are implemented efficiently and error-free – from data acquisition to the creation of a consistent model that takes all relevant details into account.

3D measurement with UTG

Are you interested in our 3D laser scanning and surveying services? Our experts will be happy to answer all your questions and provide you with a customised quote.

Our expert
Markus Kienreich
is there for you:
T:+43 316 68 27 20-233
E: markus.kienreich@utg.at

Get in touch now
